Solenoid Winding Machine for valve

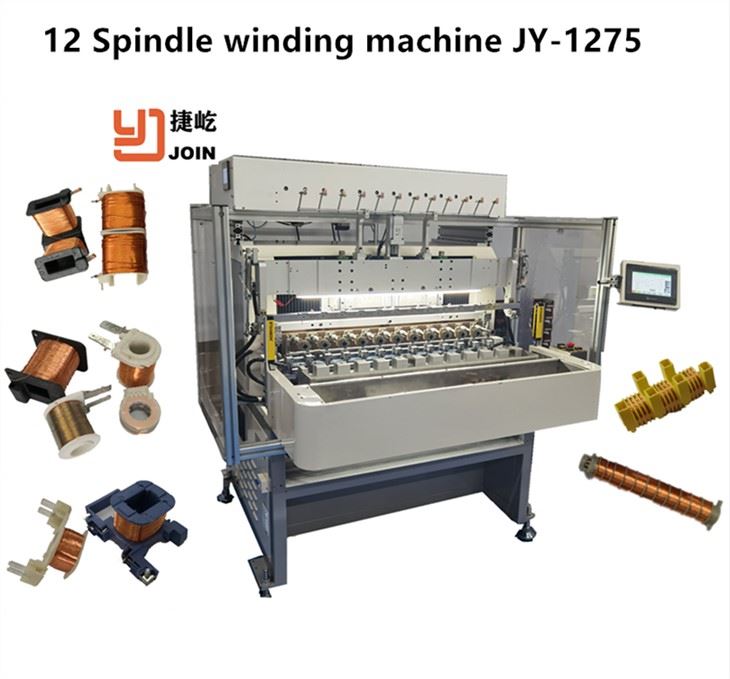

Machine model: JY1275

1.Range of use

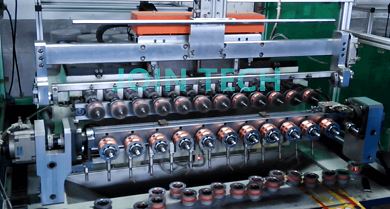

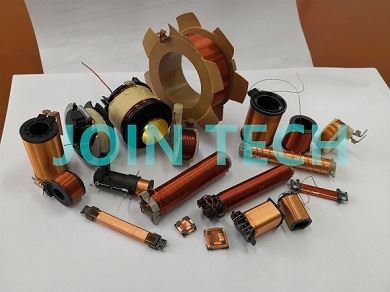

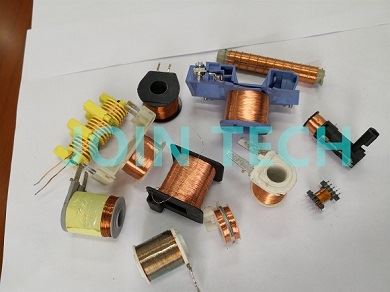

12 spindle wire winding machine. Mainly for various kind of solenoid coil winding, synchronous motor coil and ignition coils winding.

2.Main function

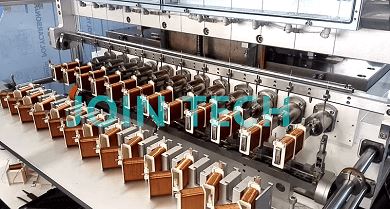

-Bobbin Auto load/unload, leader wire auto wrapping on the bobbin pins, auto winding, auto traversing, auto wire cut and clamp.

-CNC winding machine, English language operation HMI. Different type of coil winding: only need to exchange the fixtures and saved programs.

-Winding program edit and save in the English language HMI.

3.Technical specification

4.Optional device

-Rotate load/unload device.

-Magnetic tensioner/electric servo tensioner.

-Wire stripping device

-Auto scissor device.

-Siemens control system and servo motor

5.Main parts brand:

Servo motor:Mitsubishi

Pneumatic parts:SMC/Airtac

Control system: Leadshine or JOIN control system.
