1.Range of use

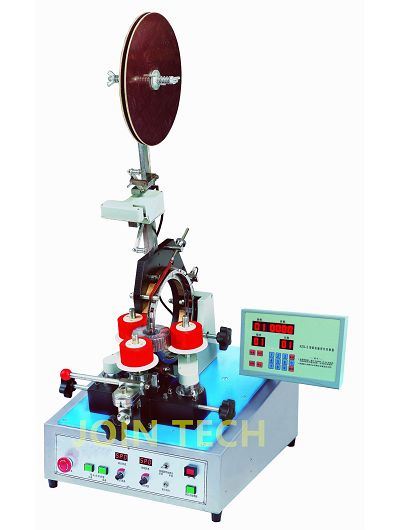

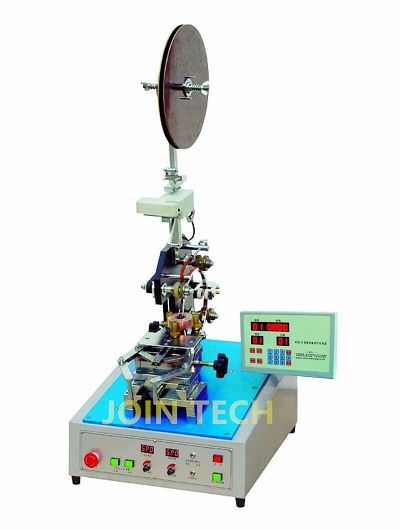

Toroid taping machine.Mainly for different kind of toroidal rings taping.

2.Machine main specification

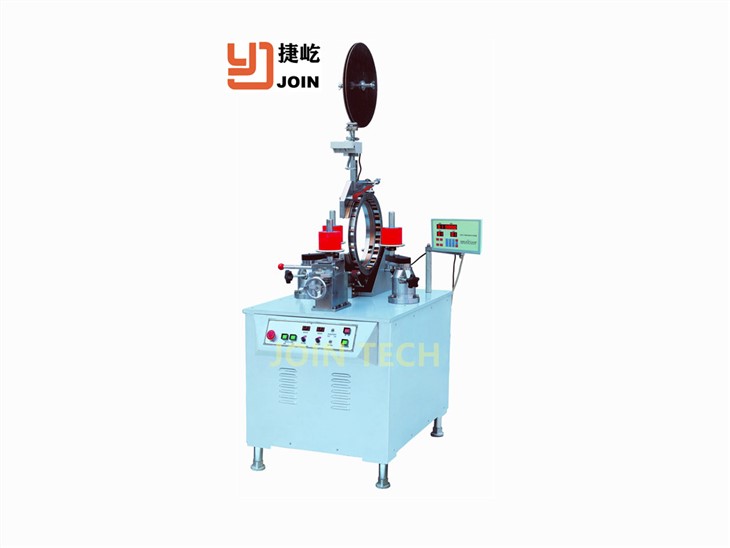

JYBJ-1750(taping machine/Mag.OD.400) (unit):mm

Tape width	15(20、25、30)	Max.taping speed	120rpm
Max.final coil.O.D	φ130—650	Tape spacing	Proportional linkage
Min.final coil.I.D	φ60	Supply voltage	AC 220V（50Hz）
Max.finalcoil height	150	Mechanical dimensions	9000×600×1800
Controller storage capacity Programs	29（set）	Weight	240kg

JYBJ-0615(taping machine/Mag.OD.220) (unit):mm

Tape width	6（8）10	Max.taping speed	250rpm
Max.final coil.O.D	φ80	Tape spacing	Proportional linkage
Min.final coil.I.D	φ16	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	40	Mechanical dimensions	550×500×1100
Controller storage capacity Programs	29（set）	Weight	93kg

JYBJ-0825(taping machine/Mag.OD.250) (unit):mm

Tape width	8（10、12、15）	Max.taping speed	250rpm
Max.final coil.O.D	φ45-200	Tape spacing	Proportional linkage
Min.final coil.I.D	φ25	Supply voltage	AC 220V（50Hz）
Max.finalcoil height	80	Mechanical dimensions	550×500×1100
Controller storage capacity Programs	29（set）	Weight	100kg
