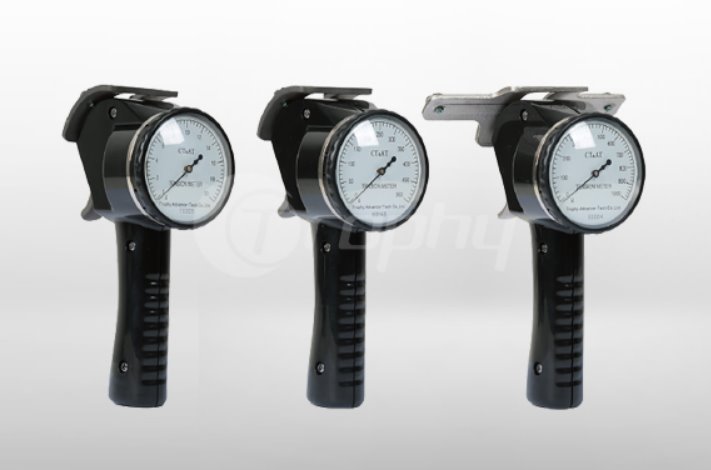

The Tension meter T1 series is used to accurately measure the running line tensions on all kinds of wires (copper, aluminum, plastic etc.), cotton thread and fibers. With precise jeweled (Ruby bushing) movements, precision ball bearing mounted rollers and a built-in damper, the T1 tension meter completely eliminates the vibrations and resistance caused by the instrument itself, providing reliable, accurate and steady tension readings even as it fluctuates.
Winding machine tensioner mechanical meter
The Tension meter T1 series is used to accurately measure the running line tensions on all kinds of wires (copper, aluminum, plastic etc.), cotton thread and fibers. With precise jeweled (Ruby bushing) movements, precision ball bearing mounted rollers and a built-in damper, the T1 tension meter completely eliminates the vibrations and resistance caused by the instrument itself, providing reliable, accurate and steady tension readings even as it fluctuates.
1. Models
Model | Measurement Range (grams) | Trigger Plate Size | Min scale on dial (grams) | Accuracy (grams) | Weight (KG) |
T1-01-020 | 0 to 20 | 01 | 0.5 | 0.5 | ~0.38 |
T1-01-050 | 0 to 50 | 01 | 1.0 | 1 | ~0.38 |
T1-01-100 | 0 to 100 | 01 | 2.0 | 2 | ~0.38 |
T1-01-200 | 0 to 200 | 01 | 4.0 | 4 | ~0.38 |
T1-01-300 | 0 to 300 | 01 | 6.0 | 6 | ~0.38 |
T1-01-500 | 0 to 500 | 01 | 10 | 10 | ~0.38 |
T1-02-1000 | 0 to 1000 | 02 | 20 | 20 | ~0.50 |
T1-02-2000 | 0 to 2000 | 02 | 40 | 40 | ~0.50 |
T1-02-3000 | 0 to 3000 | 02 | 60 | 60 | ~0.50 |
