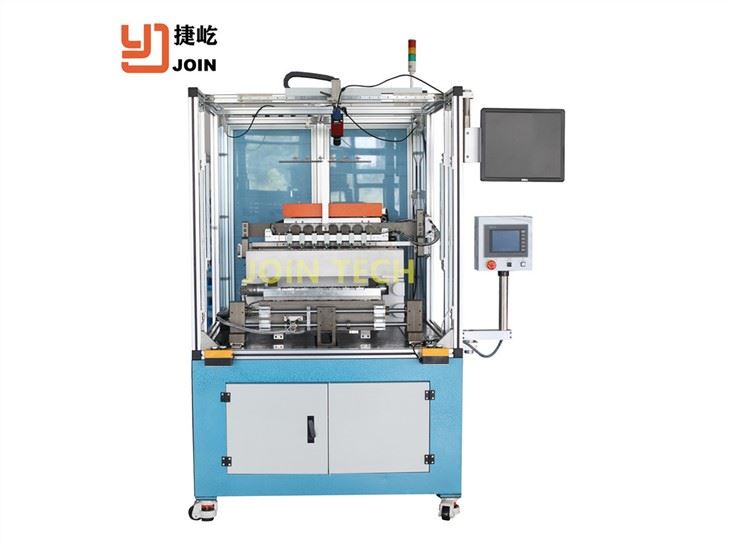

Coil Winding Machine for Antenna

Coil Winding Machine for Antenna

Antenna coil winding machine. Various kind of long coils such as long antenna coil or Ignition coil.

Send Inquiry
Product Details

Machine model: JY0660


1、  Range of use

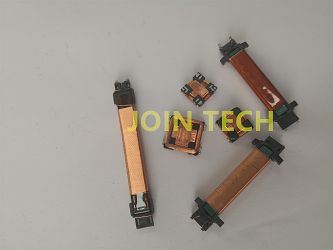

Antenna coil winding machine. Various kind of long coils such as long antenna coil or

Ignition coil.

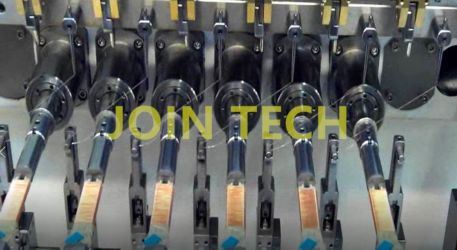

IMG_20200107_093612(002)JY06602(001)


2、Main function

     -Auto load/unload, auto tailstock. auto pin wrapping, auto winding, auto traversing, auto wire cut and clamp


3、Technical specification


Machine model

JY0660

Rotation diameter

 <φ55mm

Wire size

 0.02mm-0.60mm

Power supply

Single phase AC220V（±5%），50Hz

Air  source

 0.5-0.6 MPa

Number of spindle

 6/8

Pitch

 60mm

Main motor

Servo 1.5kW

Spindle speed

 0-6000rpm

XYZ motor

 servo 200W

Stroke of XYZ

 X≤95mm；Y≤100mm；Z≤100mm

Wrapping position

 0°，90°



 4、 Optional device

-Auto taping device, electric servo tensioner.
