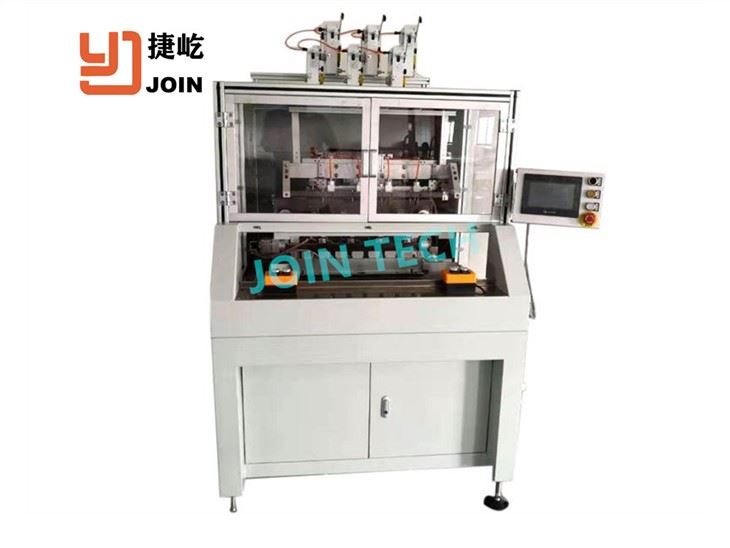

Machine model: JY0690

1、 Range of use

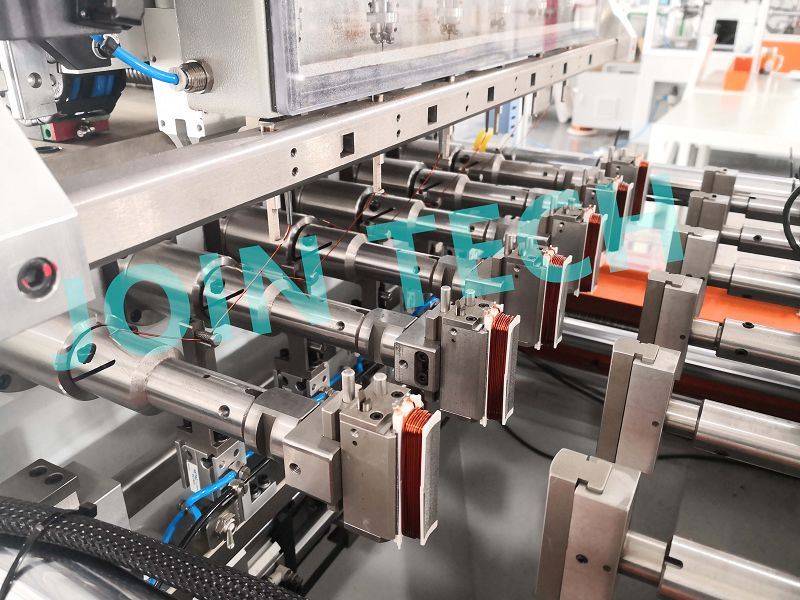

Full auto brushless motor segment tooth winding machine. Mainly for small power servo motor segment,40# 60#,80# and 90# tooth winding.

IMG_20200106_110109(001)

2、 Main function

- Manual load segments or bobbin on the fixture on the load pallet station.

-Fixture with segment or bobbin auto load to machine spindle.

-Auto tailstock, auto fix leader wires on the tooling bobbin pins, auto winding, auto traversing, auto wire cut and clamp. Auto cross bridge if for segment combined winding.

-Fast exchange toolings and programs

-Special long Y axis width, special for segment combined winding.

3、Technical specification

Machine model	JY0690
Spindle quantity	6
Traversing width	≤130mm(customized longer)
Revolution Diameter	<φ80mm
Wire size range	0.02mm-1.0 mm
Spindle speed	0-3000rpm
Spindle distance	90mm
Nozzle wrapping positon	0°
Main motor	Servo 3000W
3D motor&load motor	Servo 400W
Spindle positon accuracy	≤±0.36°
Power supply	AC220V（±5%），50Hz
Air source	0.5-0.6 Mpa
3D movement width	X≤80mm；Y≤200mm；Z≤80mm
Gross weight	700KG
Machine dimension	1400mm（L）×1100mm（W）×1600mm（H）

4、 Optional device

-Fixture fast exchange device, electric servo tensioner, auto taping device

Leader wire peeling device. HMI in English operation language.
