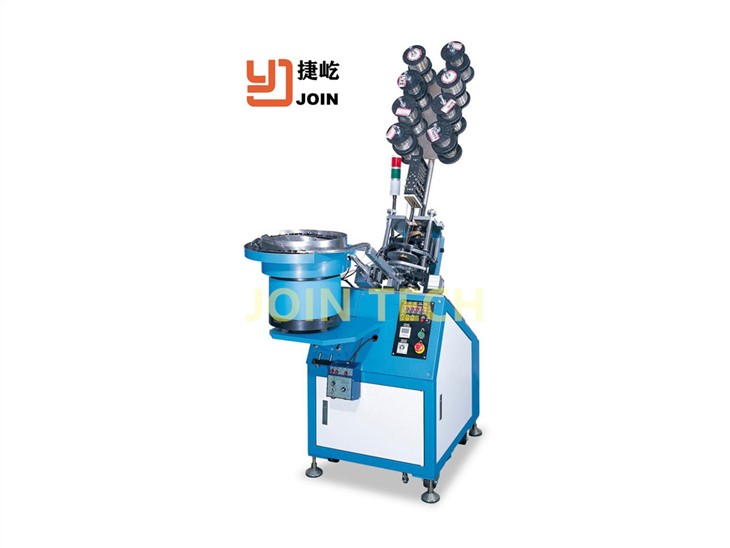

Automatic bobbin Pin insert machine. Various kind of bobbins that need to insert pins before winding wire. For example Transformer bobbin and solenoid bobbin
Machine model:JYCZJ-1
1.Range of use
Automatic bobbin Pin insert machine. Various kind of bobbins that need to insert pins before winding wire. For example Transformer bobbin and solenoid bobbin,
2. Main function
Bobbin auto vibration feed, auto load, auto pin insert, pin auto bending, auto pin cut, auto unload.
3. Machine main specification
Pin dimension | 0.6-1.5mm |
Pin type | Rould/square/flat |
Max pin quantity | 10 |
Cycle time | 30-60pcs/min |
Power supply | AC220V 50HZ |
Air supply | 0.5-0.7 mpa |
Machine size | 110cm*100cm*200cm |
Machine weight | 200kg |
