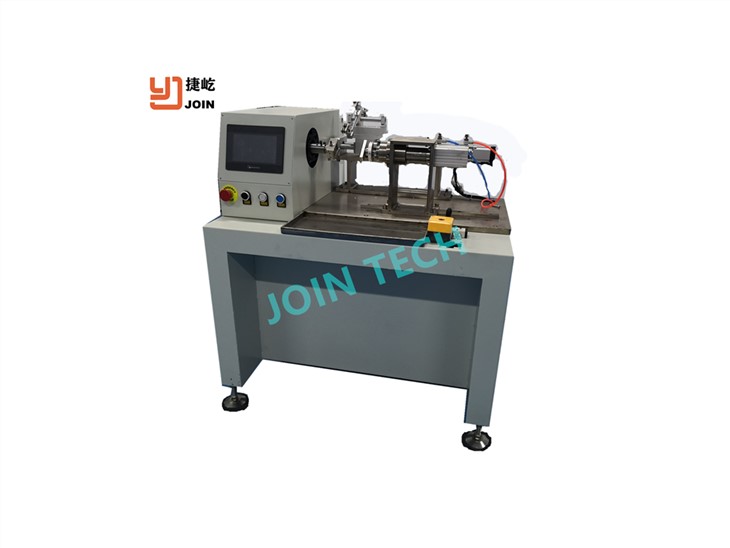

Semi-Auto Segment Winding Machine

Machine model: JY0100

1、 Range of use

Precise layer winding machine for segment tooth and big bobbins, such as elevator traction electric motor coil.

2. Main function

-Semiauto winding machine

-Manual load/unload, auto tailstock, auto winding, auto precise layer winding, servo motor controlled for precise layer winding. manual wire cut and clamp. Different type of coil winding: only need to exchange the fixtures and saved programs.

-Multistrand wire winding is optional.

-Servo motor for wire precision layer winding.

-HMI operation language:English/Chinese

3、Technical specification

4.Main parts brand:

Main motor: Mitsubishi Servo motor 1000W

Traversing motor: Mitsubishi servo motor 200W

Pneumatic parts: Airtac.

Control system: Leadshine(JOIN)

5. Optional parts:

Multistrand wire device

Electric/magnetic/Mechanical tensioner

Security cover and sensor.
