Machine model: JY3250

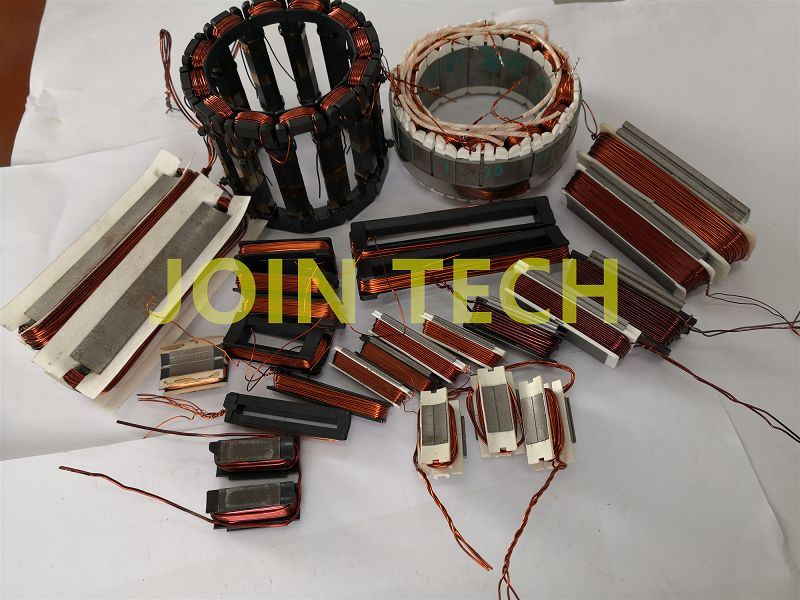

1、 Range of use

3 spindle winding machine for stator segment coil. For various kind of big segment motor core winding . Mainly for servo motor base size 130#,180# segment winding and EPS motor segment winding. Multi-strand wire winding and big bobbin auto winding.

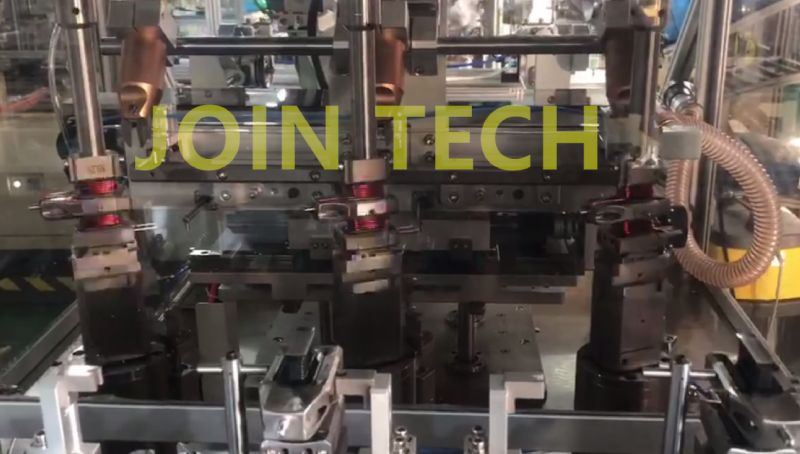

IMG_20200107_101410(001)

2、 Main function

-3 station winding, Single segment winding, 2-3-4 pcs segment tooth combined winding。

- Segments tooth or bobbin horizonal position.

-Auto tooling exchange load/unload, auto fixed leader wires on the tooling, auto tailstock, auto winding, auto crossing bridge wire, auto wire cut and clamp. Lead wire stripping device is optional. Different type of coil winding: only need to exchange the fixtures and saved programs.

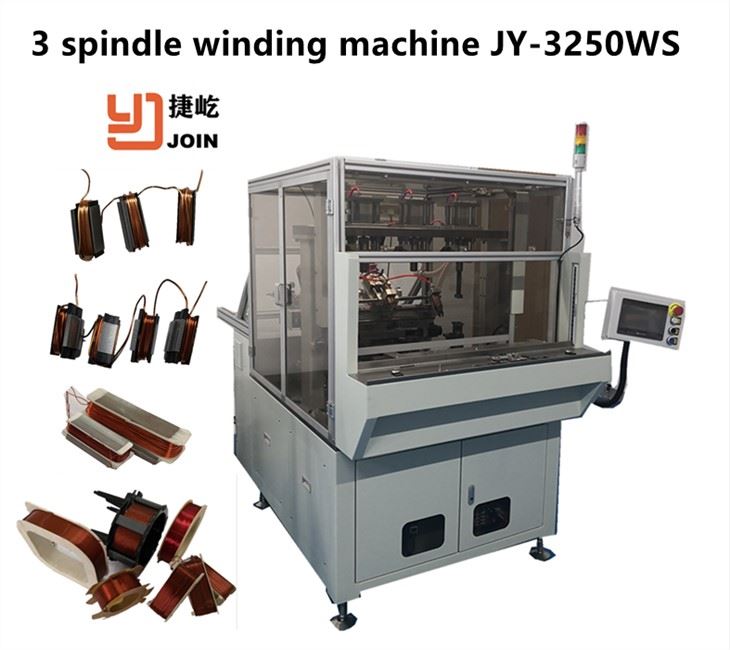

QQ20210326161953

3、Machine main specification.

Machine model	JY3250
Spindle quantity	3(customized 4 or 6 spindle)
Traversing width	≤150mm(customized longer)
Revolution Diameter	<φ200mm
Wire size range	0.02mm-1.5mm
Spindle speed	0-1000rpm
Spindle distance	250mm
Nozzle wrapping positon	0°
Main motor	Servo 3000W
3D motor	Servo 400W
Power supply	AC220V（±5%），50Hz
Air source	0.5-0.6 Mpa
3D movement width	X≤100mm；Y≤1500mm；Z≤200mm
Gross weight	800KG
Machine dimension	1400mm（L）×1100mm（W）×1600mm（H）

4、Optional parts:

Auto lead wire stripping device.

English operation language in HMI.
