Machine model: JY4130

1、 Range of use

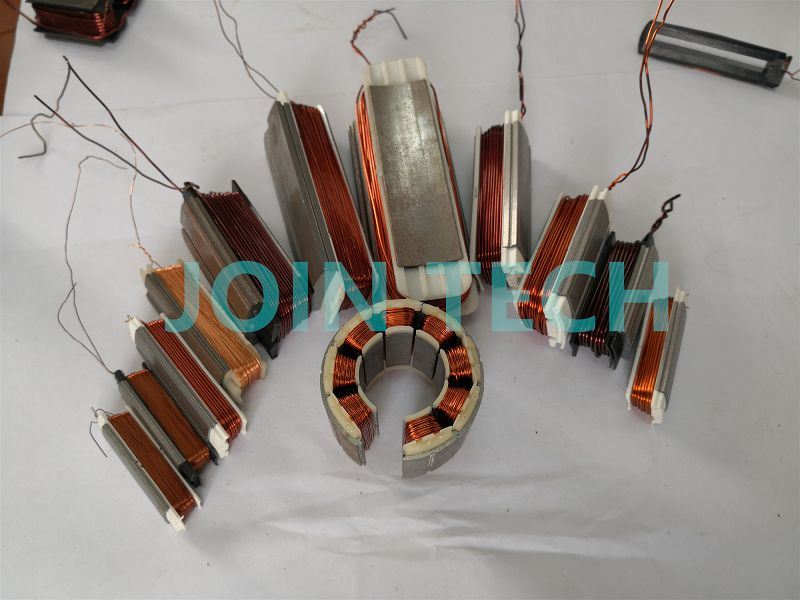

E-driver motor segment tooth winding. For various kind of segment motor core ，mainly for servo motor 40#,60#80#90# segment tooth winding.

JY413coil10(001)

2、Main function

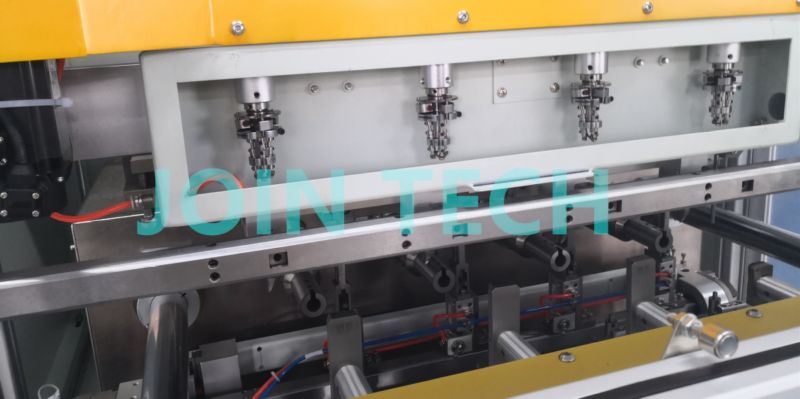

-Four spindle winding.Fixture or bobbin exchange auto load/unload, auto pin wrapping or leader wires fixed on the tooling, auto tailstock, auto winding, auto traversing, auto wire cut and clamp. Auto leader wire stripping.

-Servo motor control auto load/unload.

-Different type of coil winding: only need to exchange the fixtures and saved programs.

-English operation language in the HMI. Easy-known winding program.

3、Technical specification

Machine model	JY4130
Spindle quantity	4
Traversing width	≤150mm(customized longer)
Revolution Diameter	<φ120mm
Wire size range	0.02mm-1.5 mm
Spindle speed	0-3000rpm
Spindle distance	130mm
Nozzle wrapping positon	90°
Main motor	Servo 3000W
3D motor	Servo 400W
Load/unload motor	Servo 400W
Spindle positon accuracy	≤±0.36°
Power supply	AC220V（±5%），50Hz
Air source	0.5-0.6 Mpa
3D movement width	X≤80mm；Y≤110mm；Z≤80mm
Gross weight	700KG
Machine dimension	1400mm（L）×1100mm（W）×1600mm（H）

4、 Optional device

-Fixture fast exchange device.

-electric servo tensioner

-Auto taping device

-Leader wire stripping device.

-Siemens PLC control system and servo motor.

5.Delivery time:45 days after PO and advance payment.
