Single Spindle Winding Machine for Solenoid

Single Spindle Winding Machine for Solenoid

Four spindle semi-auto solenoid coils winding machine, such as solenoid coil，ignition coil and relay coil，transformer coil winding.

Send Inquiry
Product Details

Machine model: JY4DL


1.Range of use

Four spindle semi-auto solenoid coils winding machine, such as solenoid coil，ignition coil and relay coil，transformer coil winding.


2. Main function

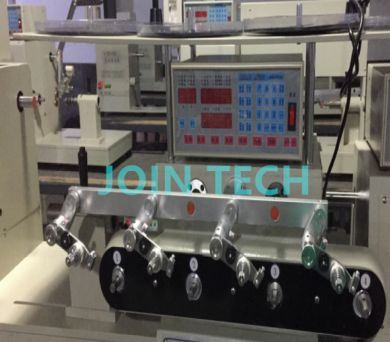

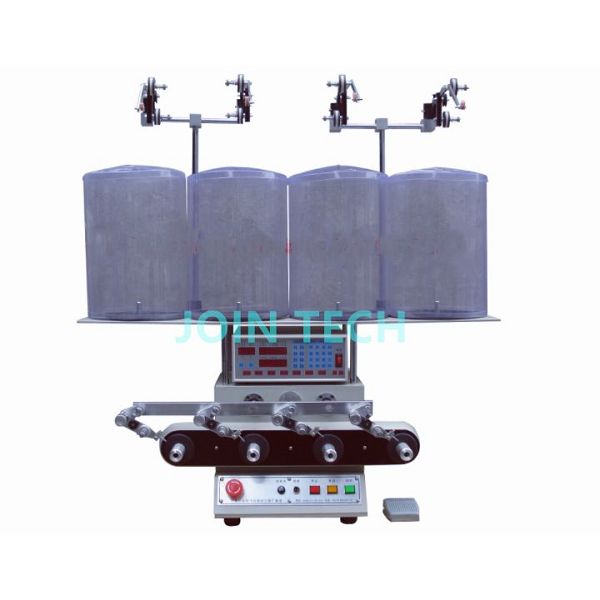

Table type 4 spindle semi-auto winding machine.

Stepper motor controlled winding and wire traversing.

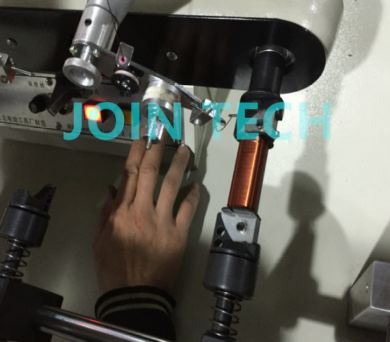

Manual load bobbin on the fixture on the spindle, manual fixed the start leader wires , Auto winding, auto wire traversing.

Manual cut fixed the end terminal leader wire, manual unload coils.


3. Main specification

Spindle speed

0-9000rpm

Traversing accuracy

0.01mm

Traversing width

0～100mm

Main spindle accuracy

≤0.1 turn

Main motor

AC motor

Traversing motor

Step motor

Power

600W

Revolution width

100mm

Wire size

0.02-0.6mm

Power supply

AC220V±5% 50HZ

Machine size

600mm(L)×350 mm（W）×600mm(H)

Weight

50kg


JY4DL3 -

JY4DL4 -

4.Tooling need to be customized.

5.Spare parts with the machine: 4 pcs magnetic tensioner

                                                                    4 pcs nozzles

6.Delivery time

5 days after PO and advance payment.


7.Warranty for one year
