Automatic wire winding machine, big spindle distance(100mm),for various kind of big bobbin winding, solenoid valve coil, contactor coil, synchronous motor coil, ignition coil and stepper motor coil winding.

Product Details


Machine model: JY8100


1、 Range of use

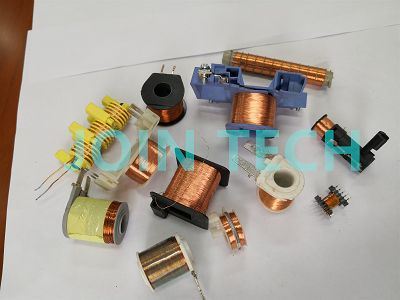

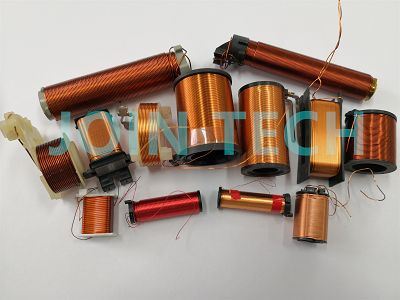

Automatic wire winding machine, big spindle distance(100mm),for various kind of big bobbin winding, solenoid valve coil, contactor coil, synchronous motor coil, ignition coil and stepper motor coil winding.

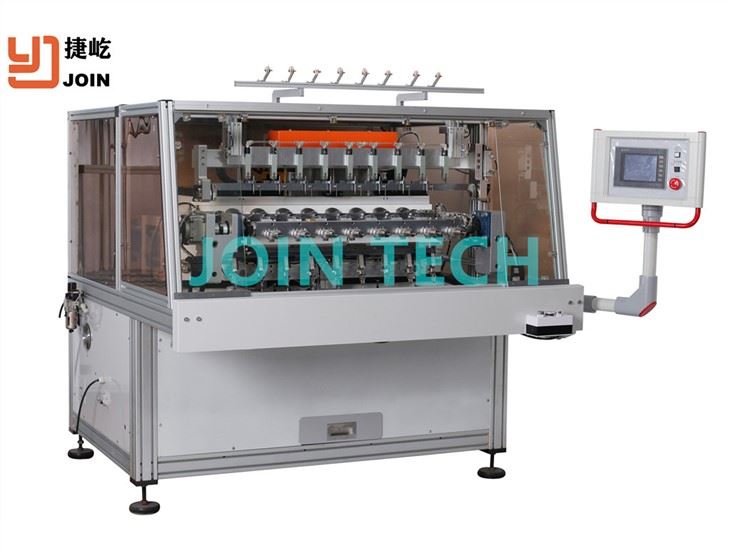

6 spindle solenoid winding machine(001)IMG_20200107_144110(001)

2、Main function

- Manual load the bobbin on the load bar, bobbin auto load to machine spindle,

- Auto swrapping the start wire, auto precise layer winding, auto wire cut and clamp.

- Bobbin auto unload.

English/Chinese operation language in HMI. Winding program edit in the HMI.

3、Machine Technical specification

Machine model

JY8100

Stroke of transverse

≤100mm

Rotation diameter

<φ95mm

Wire size

0.02mm-0.80mm

Power supply

Single phase AC220V(±5%),50Hz

Air source

0.5-0.6 MPa

Number of spindle

8

Spindle distance

100mm

Main motor

Servo 1.5kw

Spindle speed

0-6000rpm(0-9000rpm)

XYZ motor

servo 200W

Stroke of XYZ

X≤95mm;Y≤130mm;Z≤70mm

Wrapping position

0°,90°

Gross weight

800KG

Machine dimension

1300mm(L)×1200mm(W)×1500mm(H)


4、Machine main parts brand

Main motor: Mitsubishi Servo motor 1.5KW

3D (X/Y/Z) motor: Mitsubishi servo motor 200W

Pneumatic parts: AIRTAC /SMC

Control system: JOIN control system(leadshine)

5.Machine standard packing list


Description

Quantity

Remark

Machine body

1 set

standard

Tooling(fixture)

1 set

customized

Tensioner

8 pcs

Magnetic tensioner

Copper wire reel table

1 set

standard

nozzle

8 pcs

customized

Wire reel cover

8 pcs

standard

English language HMI

1 pcs

Assembly on the machine


6. Optional device

-Auto wire stripping device, electric servo tensioner, auto scissor device

-Siemens PLC control system and Siemens servo motor is optional 。

7.Warranty for one year

8.Engineer overseas service at customers plant .
