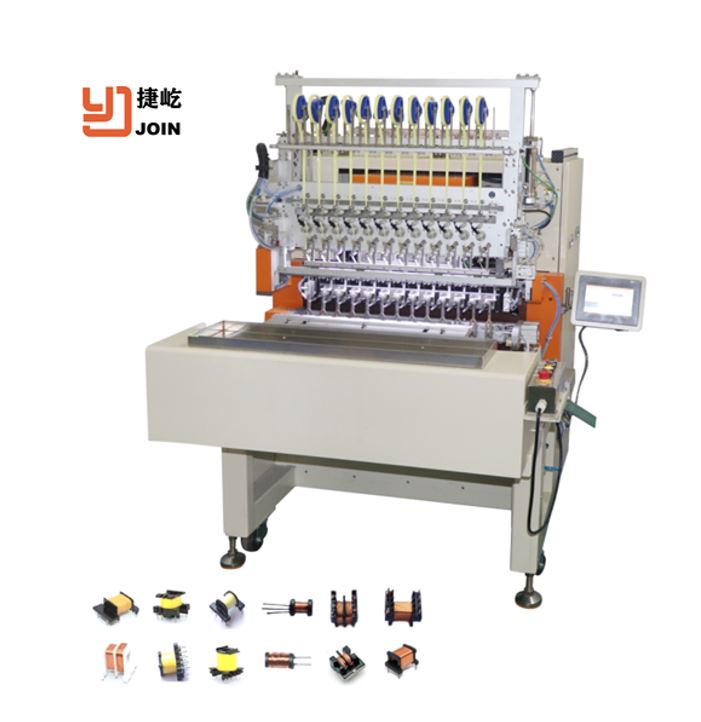

Machine model: JY0860BJ

1.Range of use

Transformer coil winding and taping machine.

Special for the copper wire need to be cut by auto scissor device. Such as transformers with Litz wire or 3 layer insulation wire winding and taping.

Transformers with reflex taping and margin taping.

2.Main function

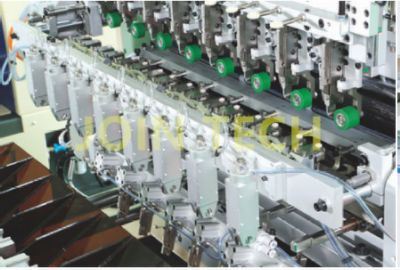

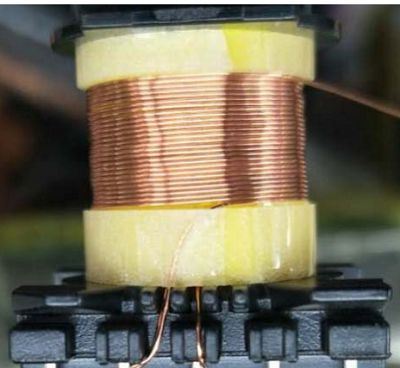

-Bobbin auto load/unload, auto leader wire wrapping on the bobbin pins, auto winding, auto traversing, auto scissors or auto blade device for wire cut , auto wire clamp.

-Auto reflex taping, auto insulation taping, auto margin taping.

-Operation language: English/Chinese.Winding program edit in the HMI.

12 (1)

3.Technical specification

Machine model	JY0860BJ
Stroke of transverse	≤150mm
Rotation diameter	<φ50mm
Wire size	0.02mm-0.30mm(0.3-0.6mm need auto scissor device)
Air source	0.5-0.6 MPa
Number of spindle	8
Spindle distance	45、 60
Main motor	Servo 1.5kW
Power supply	AC220V（±5%），50Hz
Stroke of XYZ	X≤150mm；Y≤150mm；Z≤150mm
Machine dimension	1300mm×1000mm×1500mm
Gross weight	800KG
Wrapping position	0°，90°, 135°
XYZ motor	servo 200W
Spindle speed	0-9000rpm

4.Machine standard packing list

Description	Quantity	Remark
Machine body(winding+taping)	1 set	standard
Tooling(winding fixture+taping tooling)	1 set	customized
Tensioner	8 pcs	Magnetic tensioner
Copper wire reel table	1 set	standard
nozzle	8 pcs	customized
Wire reel cover	8 pcs	standard
English language HMI	1 pcs	Assembly on the machine

5. Optional device

-Auto scissor device or auto blade device to cut leader wire.

6.Warranty for one year
