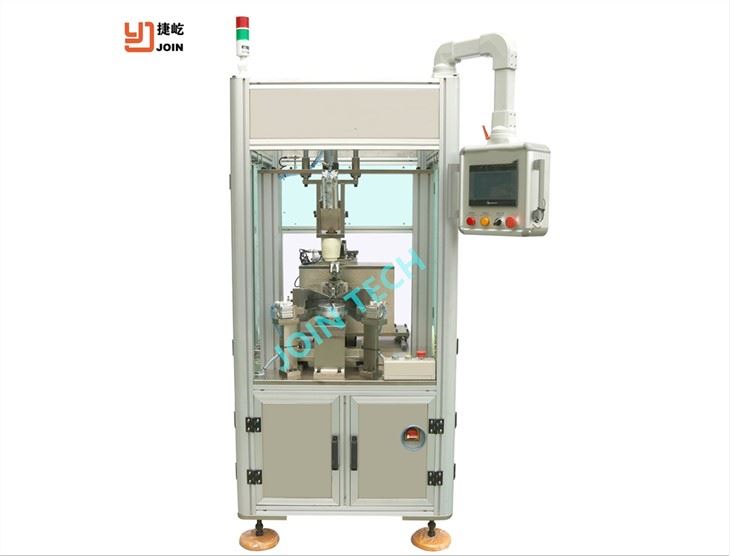

China Customized Hub Motor Winding Machine Suppliers, Manufacturers - Factory Direct Price

1、 Range of use

Mainly for hub motor winding, scooter motor, and new energy vehicle motor ,big fan motor auto winding.

2. Main function

-Single station/double station single flyer winding, special for hub motor multi-strand wire flyer winding. For example,7 strand wire*8 turns, 8 strand wire*8 turns,12 strand wire*5 turns, 9 strand wire*12 turns.

-Manual load/unload, PLC control system,auto fixed start wire, auto flyer winding, auto precise layer winding, rotor/stator auto division, auto wire cut and clamp.

3. Technical specification

Winding station	1/2
Wire size range	0.1-0.6mm/0.6-1.0mm
Rotor OD	100mm-250mm(special can be customized)
Max stack height	20mm-50mm(special can be customized)
Traversing width	30mm
Winding speed	0-1500rpm
Power supply	AC220V（±5%），50Hz
Air source	0.4-0.7 Mpa
Gross weight	900KG
Machine diameter	84019201820mm

4.Cycle time for 51 slots hub motor

8 strand wire and 8 turns with 0.51mm wire size, usually 320s/group

Hot Tags: hub motor winding machine, China, suppliers, manufacturers, factory, customized, price, cheap, made in China, winding machine for servo motor, Servo Motor Stator Winding Machine, segment winding equipment, Automatic Segment Winding Machine, winding machine for edriver motor, winding machine for segment tooth

Stator Segment Winding Machine

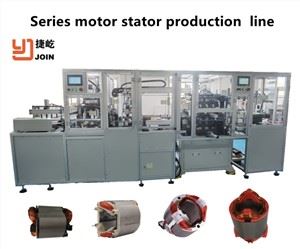

Series Motor Stator Winding Machine
