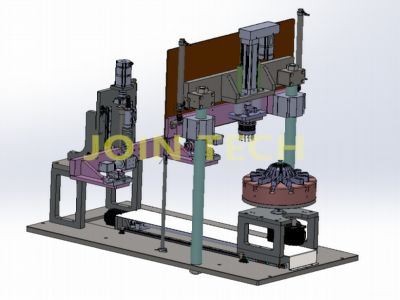

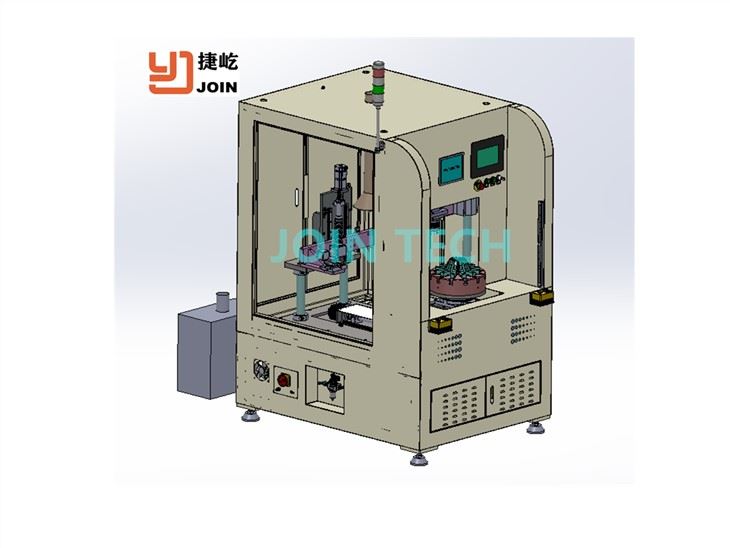

Laser Welding Machine

JYJGH01(segment tooth round)

1. Range of use

Laser welding machine for segment tooth

For various kind of servo motor segment tooth that need rounding and laser welding.

2. Main function and work flow

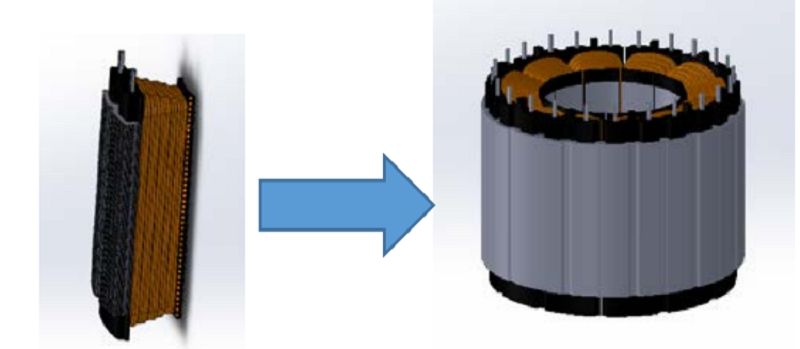

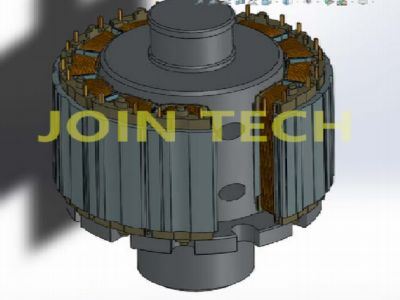

Manual pre-round(assemble the 12 pcs segments on the steel tooling

Manual load the steel tooling with segments into the chuck tooling.

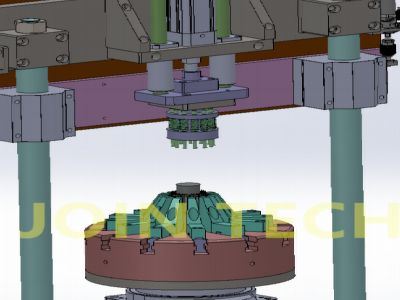

Chuck tooling with the parts move into welding station

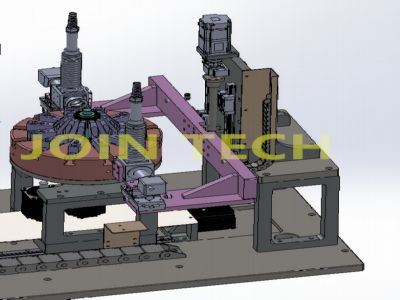

Auto welding(double head welding)

Chuck tooling auto move out

Manual unload the steel tooling for next step.
