China Customized Servo Tensioner Suppliers, Manufacturers - Factory Direct Price

Servo Tensioner

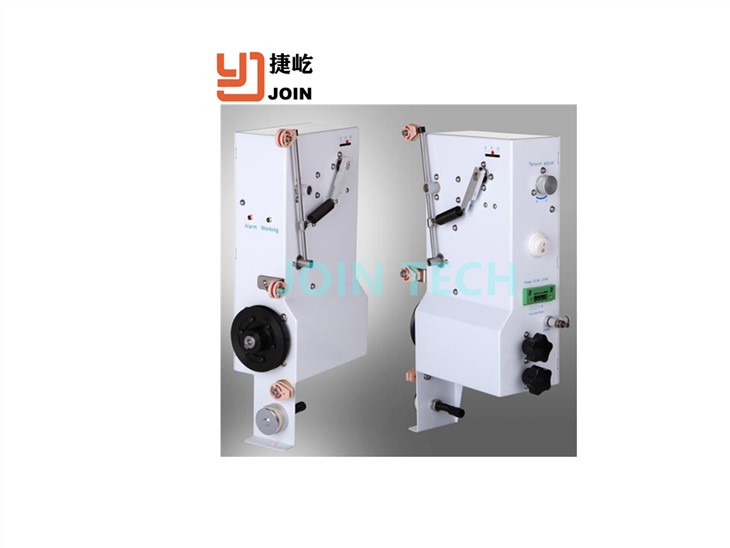

Winding machine servo tensioner
- High speed operation under high torque conditions, Stable tension
- Wide selection of wire travel speed, maximum 12 m/s-15m/s
- Clear LED status indicators
- Dual scale display, easy adjustment of main tension and second tension
- Dual spring tension control, wide tension range
- Built-in Adaptive Speed Control
- Built-in wire break detection and alarm output

1、 Main specification

Winding machine servo tensioner

- High speed operation under high torque conditions, Stable tension

- Wide selection of wire travel speed, maximum 12 m/s-15m/s

- Clear LED status indicators

- Dual scale display, easy adjustment of main tension and second tension

- Dual spring tension control, wide tension range

- Built-in Adaptive Speed Control

- Built-in wire break detection and alarm output

2、 Model Selection

DS-TK Model Selection:

Model No.	Tension Range(g)	Max Wire Travel Speed(m/s)	Power Supply	Rated Current(A)	Suitable Wire Size(mm)
DS-TK-C07-45S200	1~200	7	DC24V	2.0	0.01-0.18
DS-TK-C07-45S300	4~300	7	DC24V	2.0	0.02-0.20
DS-TK-C07-45J600	30~600	7	DC24V	2.0	0.05-0.35
DS-TK-C12-45S400	20~400	12	DC24V	2.5	0.02-0.25
DS-TK-C12-45J600	30~600	12	DC48V	3.0	0.05-0.35
DS-TK-C10-45J800	30~800	10	DC48V	3.0	0.05-0.40
