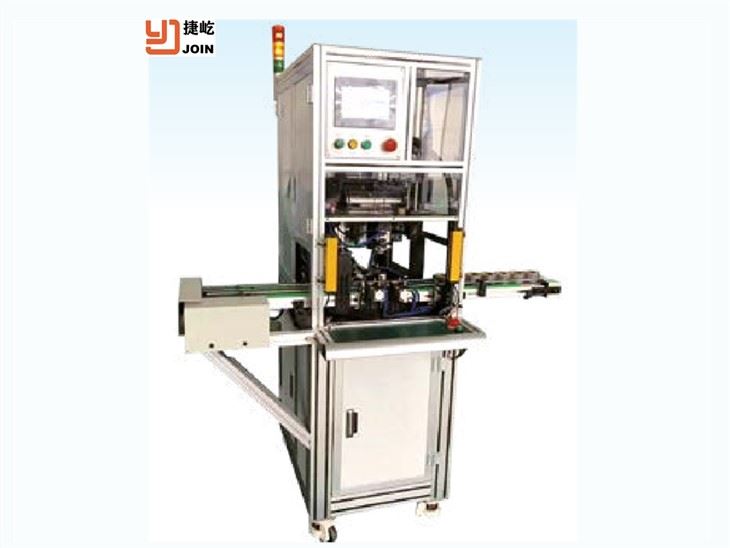

Two pole stator insulation paper insert machine
1. Range of use
Various kind of series motor stator with two poles, such power tool motor stator,mixer motor stator paper insert.
2. Main function
-Auto carry line for stator loading, auto insulation paper feeding by servo motor.Auto paper cut, auto paper bending and forming, auto paper insert, stator auto rotate.
-PLC control system, paper cut length can be set in the touch screen.
-Tooling exchange time less than 30min.
3. Main specification
Spindle quantity | 1 |
Stator OD | 30-90mm |
Paper length(stack height) | 12-80cm |
Paper width | ≤150mm |
Paper insert speed | ≤8s/stator |
Input power | AC220V |
Air source | 0.5-0.6 MPa |
Paper feeding accuracy | ≤0.5mm |
