Winding Machine Ruby Nozzle

1.Main specification

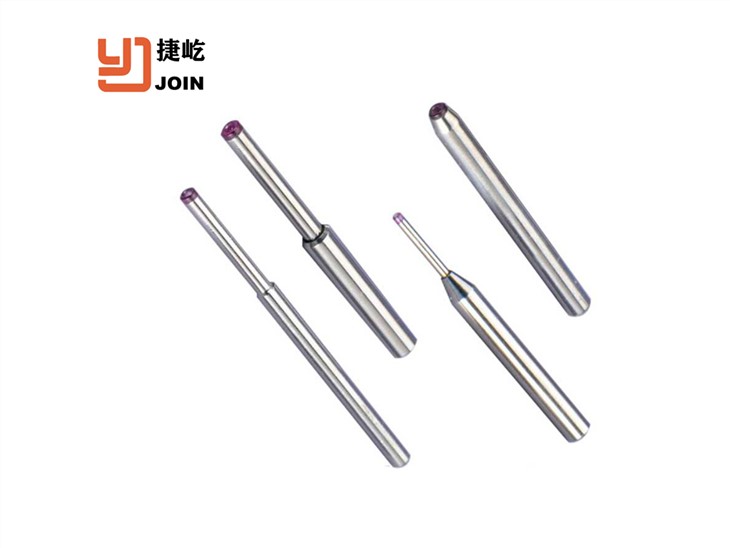

Customized winding machine ruby nozzle. JOIN’s Ruby nozzle RC series has an outlet tip made of Ruby, which has a superior hardness – the inner bore and the radius surfaces of the ruby tip are polished to a Ra0.025 surface finish. This ensures high wear resistance and low friction co-efficiency during high-speed winding. Its body is made of hardened stainless steel with dully polished inner bore, coupled with a fine ceramic (alumina) inlet for easy threading and smooth travelling of wire.

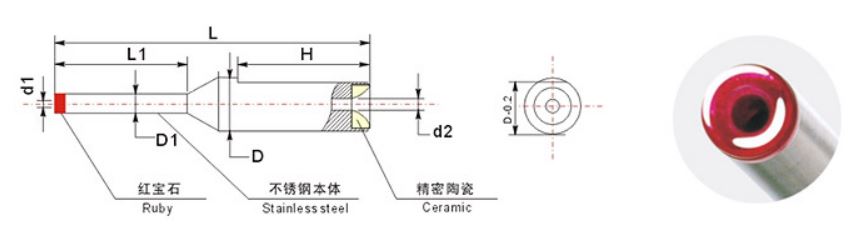

Concentricity between the clamping diameter and the outlet diameter is 0.01mm. The inner bore diameter’s tolerance is 0.01 mm.

Our precision ruby nozzles are excellent for precise coil layering.

2.Advantages:

Assembled with high precision

Ruby outlet has excellent hardness and very low friction coefficient

High wear resistance.

Applicable: Fine wire coil winding processing.

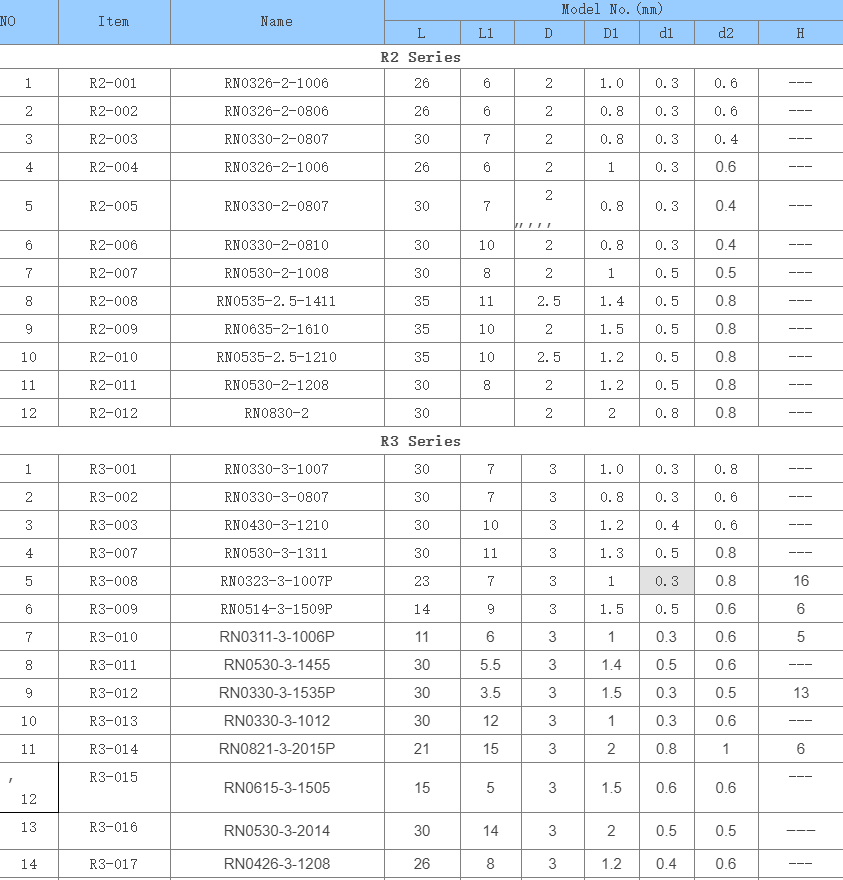

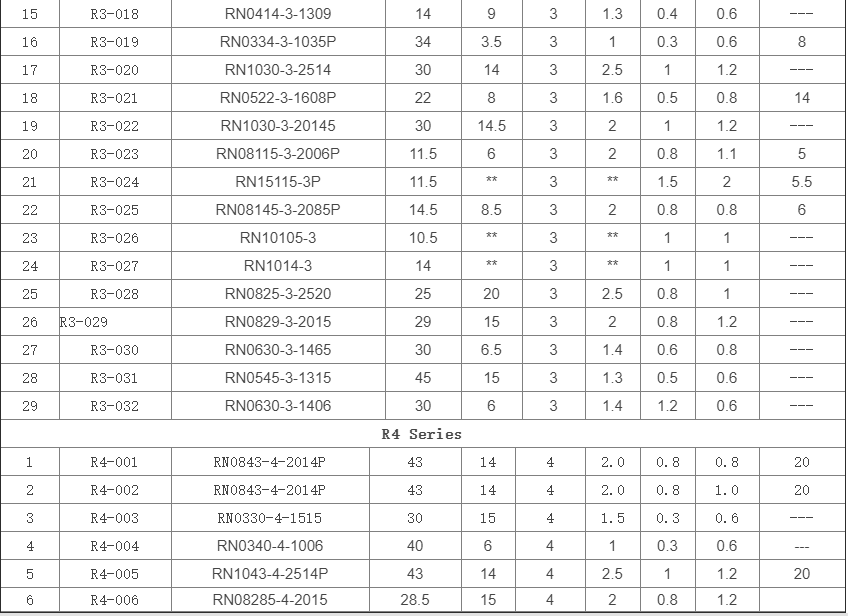

3. Model Selection: Customized
