Motor Winding Machine Nozzle

1. Main specification

Needle winding machine nozzle.

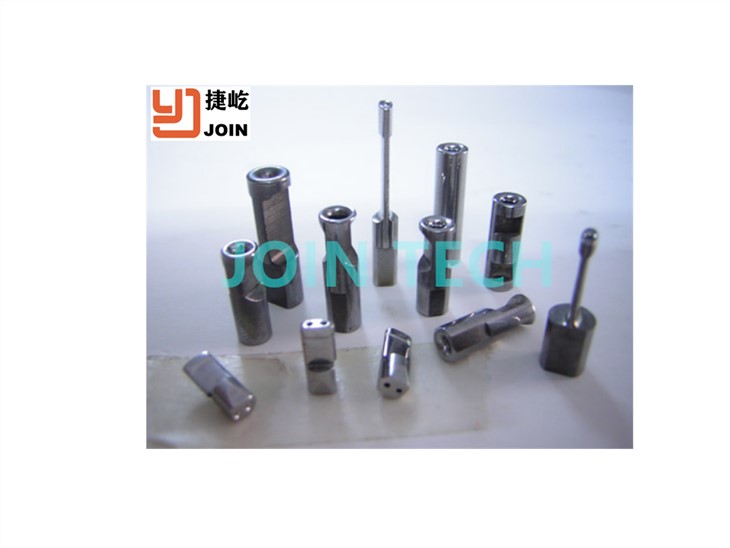

Motor nozzle is special for needle winding machine.

Each nozzle is made of a solid piece of material with no joints so as to ensure a smooth path for wire travel.

They are widely used in winding of fan coils, micro-motor coils, stator coils, rotor coils etc.

2.Advantages:

·Inner bore, inlet and outlet radii are scientifically calculated and have undergone twelve fine grinding and polishing processes to complete mirror finish surfaces. This ensures smooth travelling and minimum stress to the wire during winding.

·80X digital magnifying glass is used for quality check to ensure no scratches on polished surfaces before shipment.

◎ WA type ◎ WF type

Oval shape outlet/ shank Quadrilateral mounting

◎ WB type ◎ WG type

Outlet bigger than mountingDouble hole/multiple hole

◎ WD type ◎ WH type

Outlet side Flat type Middle of nozzle flat/Oval

◎ Can be customized according to customer requirements

◎ sectional of inner bore

3.Mode type

All motor nozzle is special customized by drawing or given data of the stator iron.
