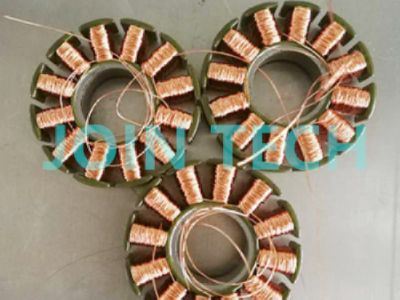

Fan motor rotor flyer winding machine. Micromotor rotor winding machine. For various kind of DC motor rotor out winding, such as fan motor and UAV motor.
JYDF-4
1、 Range of use
Fan motor rotor flyer winding machine. Micromotor rotor winding machine. For various kind of DC motor rotor out winding, such as fan motor and UAV motor.
 |  |
2.Main function

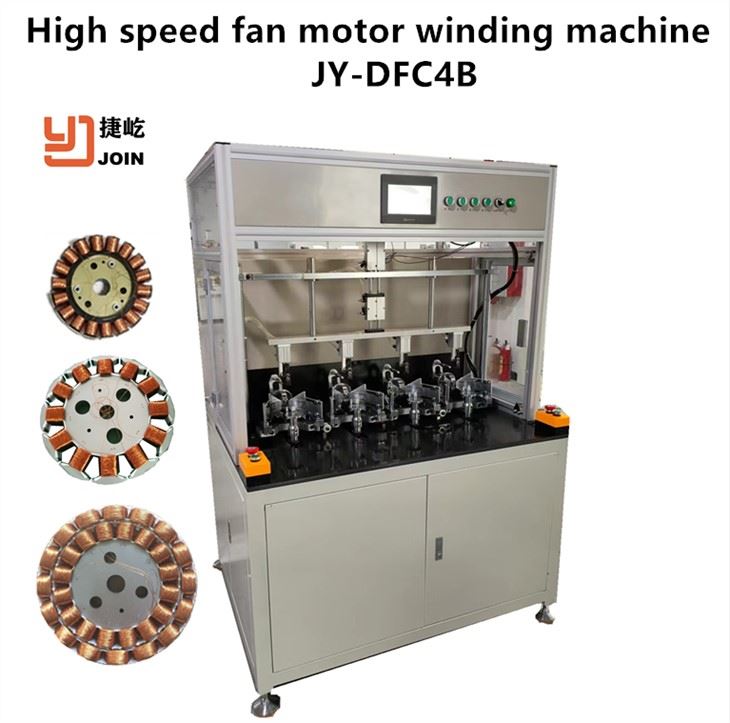

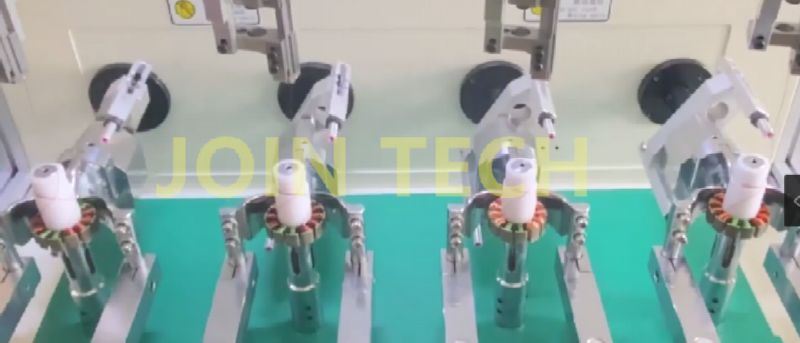

-Four station winding machine, high efficiency production.
-Rotate load/unload station is optional.

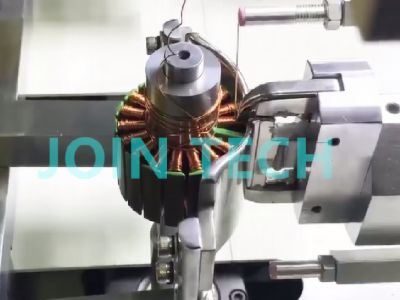

-Rotor manual load/unload, auto flyer winding, auto wire traversing,rotor auto division by motor,, auto wire cut and clamp.
-Different type of rotor winding: only need to change the fixtures and saved programs.
3、Technical specification
Winding station | 4 |
Spindle distance | 150 |
Wire size range | 0.1-0.6mm |
Rotor OD | 12mm-60mm |
Max stack height | 5mm-50mm |
Winding speed | 0-6000rpm |
Power supply | AC220V（±5%），50Hz |
Air source | 0.5-0.6 Mpa |
Gross weight | 350KG |
Machine diameter | 900mm(L)*1000mm(W)*1650mm(H) |
