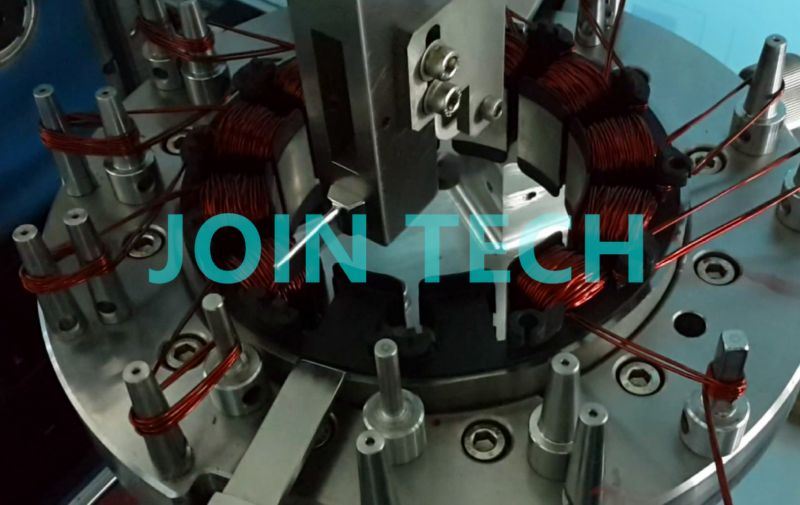

-Needles moving controlled by servo motor for inner stator layer winding.
-Manual load/unload, auto start wire fixed, auto winding, auto accuracy traversing for layer winding, auto wire cut and clamp.
-Operation language:English/Chinese.

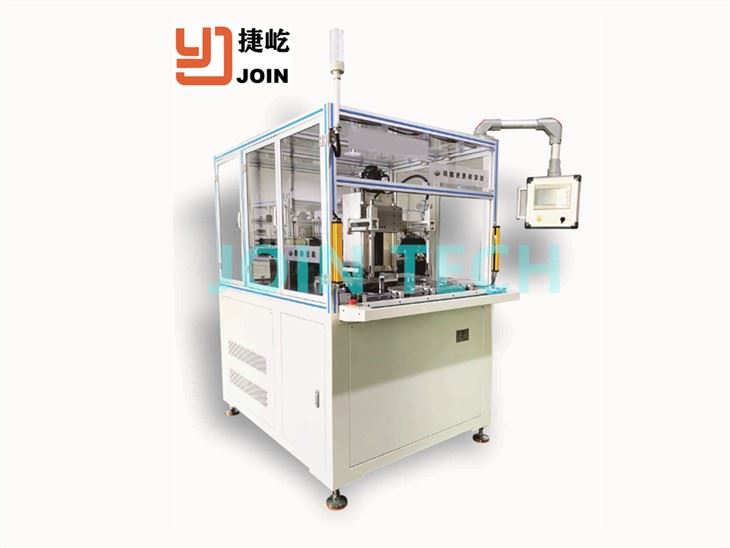

Machine model: JYNDG2300
1、 Range of use
Multi-strand wire needle winding machine

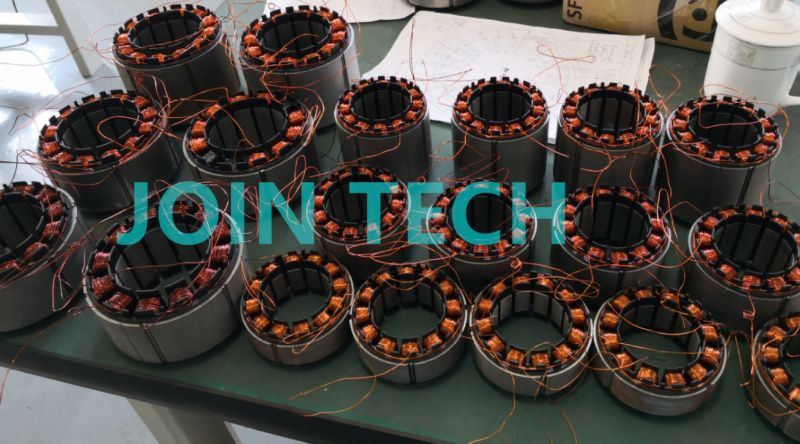

Various kind of brushless motor multi-strand wire needle winding, such as ebike motor stator, New energy motor stator needle winding.
Special for brushless motor stators that with small slot size but needle multi-strand wire needle winding,such as new energy motor.
2、Main function
-Needles moving controlled by servo motor for inner stator layer winding.
-Manual load/unload, auto start wire fixed, auto winding, auto accuracy traversing for layer winding, auto wire cut and clamp.
-Operation language:English/Chinese.
3、Technical specification
Winding station | 1 or 2 |
3D movement width | X≤200mm，Y≤200mm,Z≤250mm |
Max core OD | 140mm |
Min core ID | 55mm |
Max stack height | 60mm（can be customized） |
Wire size range | 0.1-1.2mm(single wire ) |
Multi-strand wire | 2-12 strands (depends on the single wire size and stator) |
Winding speed | 0-700rpm（Depends on stator diameter） |
Power supply | AC380V（±5%），50Hz |
Air source | 0.5-0.6 Mpa |
Gross weight | 800KG |
Machine diameter | 1200mm(L)*1000mm(W)*1800mm(H) |
4、Optional parts:
Single wire winding or multi-strand wire winding device.
Customized motor nozzle.
