China Customized flat wire coil Wire Winding Machine Suppliers, Manufacturers - Factory Direct Price

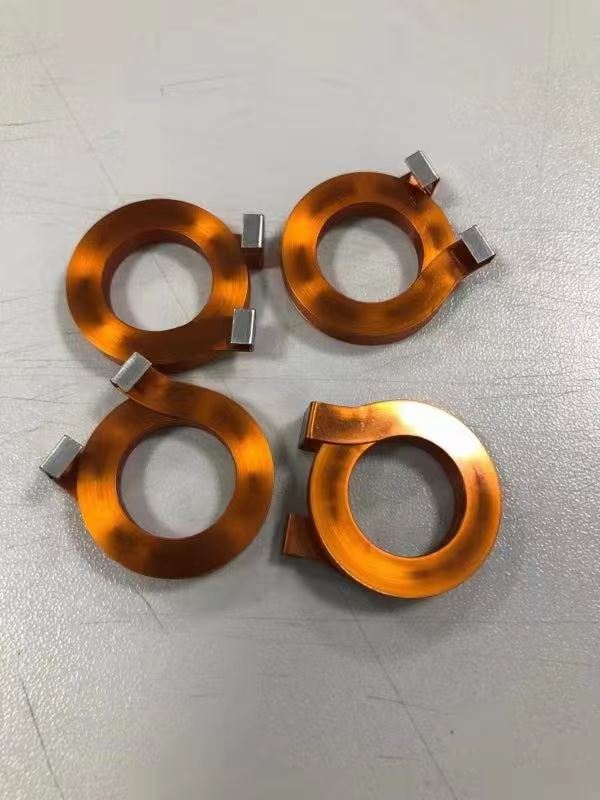

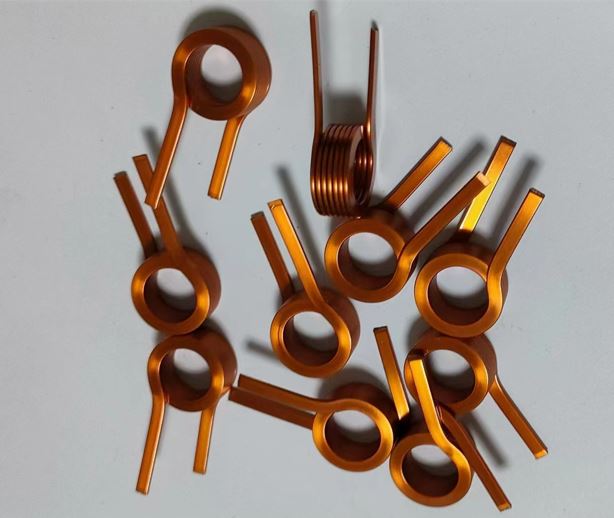

Range of use

20220615140328

20220615140501

2 .Main function

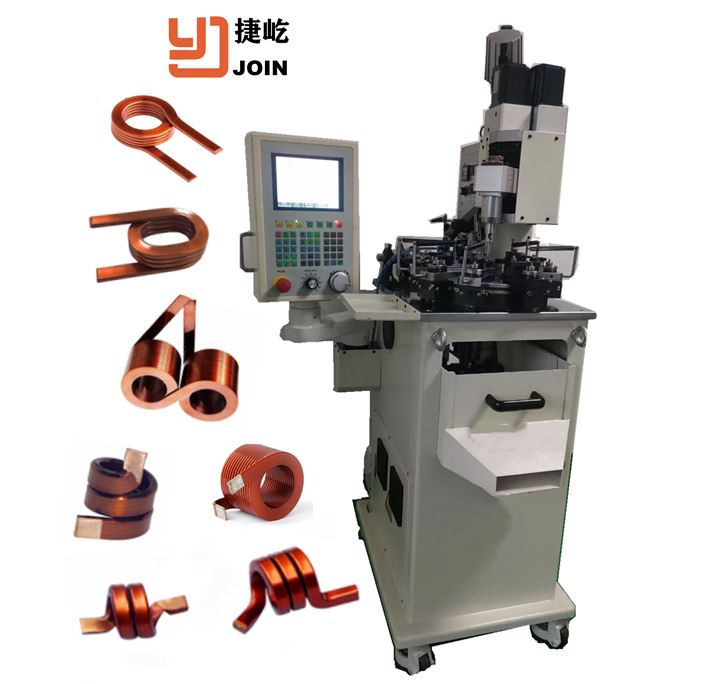

Full-auto winding machine,auto wire feeding, auto winding, auto wire traversing, auto wire clamp and cut. Leader Wire auto stripping and tin soldering. No wasteful terminal wire.

Different inner diameter coil production only need to change the fixtures and winding program saved in the HMI.

Full auto machine, one operator could manage 5-10 set machine

2.Machine main specification

Coil Max length	40mm	Up-down axis Min setting	0.01mm
Wire size	∮0.3-∮2.0mm	Up-down axis Min setting	40mm
Start wire length	≤40mm	Winding servo	0.75kw
Wheel axis Max setting	359.9 degree	Wheel servo	1.0kw
Winding Min setting	0.1degree	Up-down servo	0.75kw
Winding Max setting	±99turns±359.9 degree	weight	500kg
Wheel axis Min setting	0.1 degree	diameter	128011801650

Machine working video at YouTube link:

https://www.youtube.com/watch?v=ceWQAJ4pZ64&t=15s
