1、 Range of use

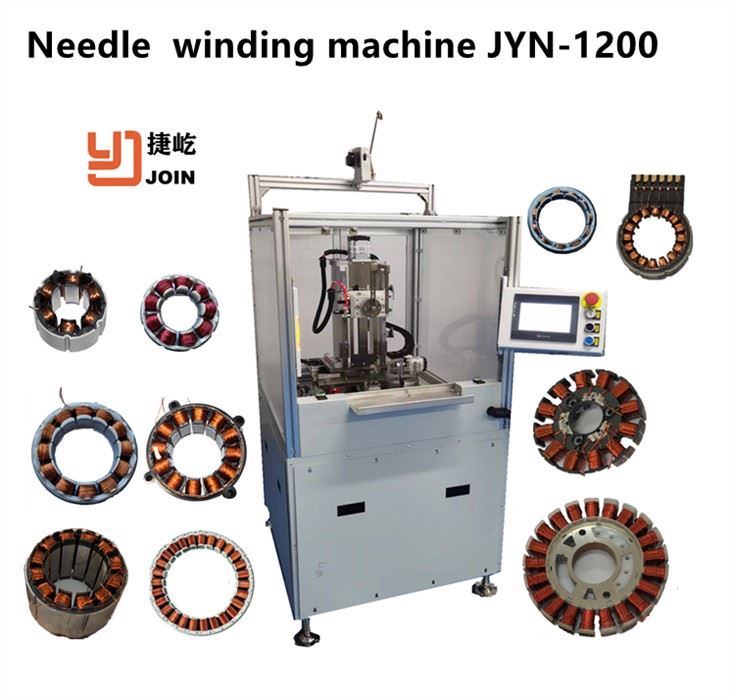

BLDC motor needle winding machine For both inner winding and outer winding. Single spindle needle winding machine mainly used for laboratory R&D test production.

2. Main function

-Manual load/unload, manual fix the stator, auto start wire fixed, auto winding, auto accuracy traversing for layer winding, auto wire cut and clamp.

-For exchange needle inner winding and outer winding,only need to change toolings and programs saved in the HMI.

3、Technical specification

Winding station	1
3D movement width	X≤200mm，Y≤200mm,Z≤250mm
Inner winding Lamination Max OD	200mm
Inner winding Lamination Min ID	10mm
Outer winding Lamination Max OD	100
Outer winding Lamination Min ID	10mm
Max stack height	150mm（can be customized to 250）
Wire size range	0.1-1.2mm
Winding speed	0-100rpm（Depends on stator diameter）
Power supply	AC200V（±5%），50Hz
Air source	0.5-0.6 Mpa
Gross weight	250KG
Machine diameter	1000mm(L)800mm(W)1800mm(H)
