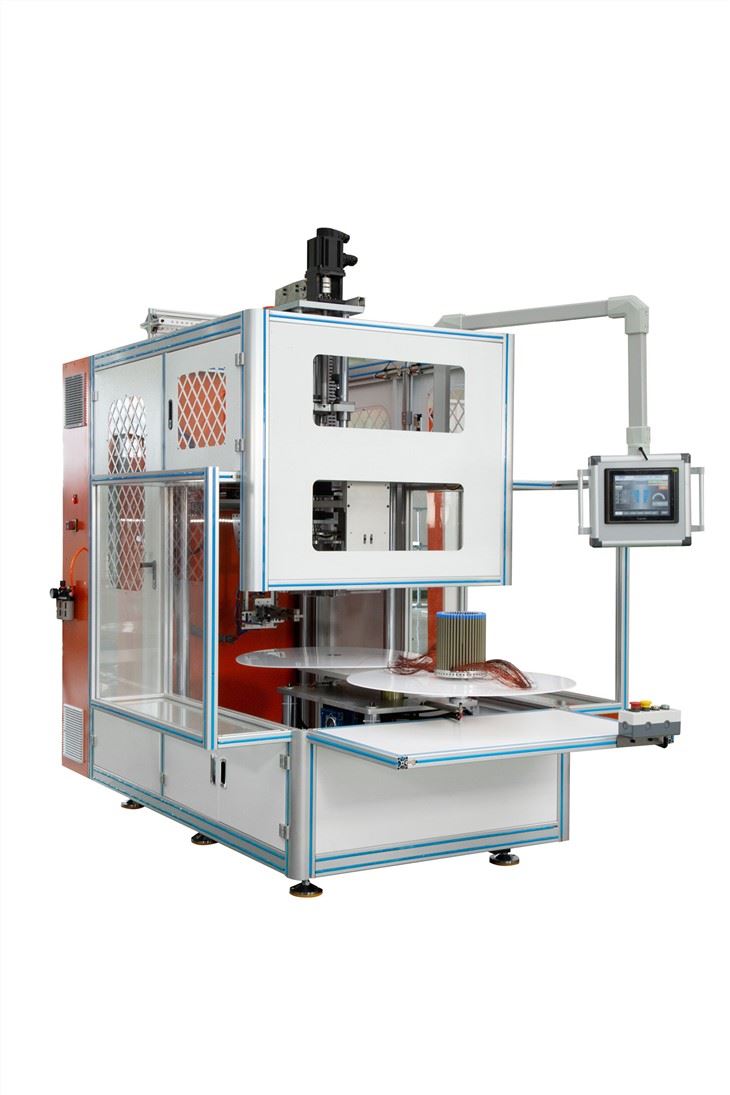

Automatic Machine For AC Motor Coil Winding

JYDZRX01

1、  Range of use

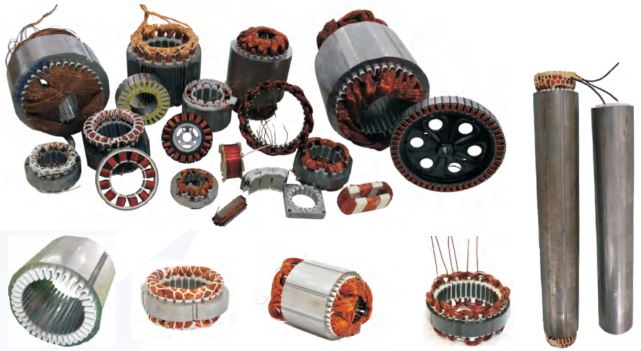

 Mainly used for three phase motor stator coil winding, such as air conditioner motor, washing machine motor, compressor motor, fan motor, pump motor etc.

2. Main function

     - This machine is with single winding head and two operation station.

     -The main phase and auxiliary phase can be wound simultaneously. The coil winding machine can put coil into transfer tool automatically, especially suitable for high production capacity stator coil winding; auto skip, auto cutting, auto indexing could be completed at one time, parameter can be set in HMI, winding tension is adjustable, has continuous/discontinuous winding method, can meet the 2poles,4poles,6poles coil winding.

3、Technical specification
