Winding machine mechanical tensioner. Tensioners are one of the vital parts of a coil winding process. They are used to ensure wire tension consistency during the winding process. By using a tensioner, the wire tension can be adjusted to the required tension accordingly, so...
Read More
Transformer coil winding and taping machine
Special for the copper wire need to be cut by auto scissor device
Such as transformers with Litz wire or 3 layer insulation wire winding and taping
Transformers with reflex taping and margin taping.
Various kind of transformer coils that have several group of winding+ taping.
Including enamel wire winding, litz wire winding, 3 insulation wire wire winding, insulation taping, reflex tapping, and margin taping
Different type of winding and taping machines can be...
Power tool stator CNC winding machine
Two spindle power tool brushless motor stator winding.
4 spindle Brushless motor stator needle winding machine. Various kind of blushless motor stator needle winding, such as washing machine motor stator，sewing machine motor, stepper motor, Pump motor stator needle winding and other BLDC motor needle winding.
Read More

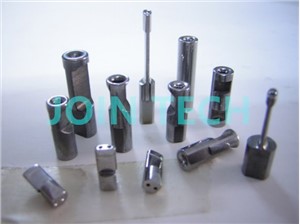

Winding machine nozzle.Tungsten steel nozzle ,Each nozzle is made of a solid piece of material with no joints so as to ensure a smooth path for wire travel. The inner bore is ground and polished to Ra0.1. Both the inlet and outlet radii are scientifically calculated and...
Read More
Needle winding machine nozzle.
Motor nozzle is special for needle winding machine.
Each nozzle is made of a solid piece of material with no joints so as to ensure a smooth path for wire travel.
The Tension meter T1 series is used to accurately measure the running line tensions on all kinds of wires (copper, aluminum, plastic etc.), cotton thread and fibers. With precise jeweled (Ruby bushing) movements, precision ball bearing mounted rollers and a built-in damper,...
Read More
Winding machine magnetic tensioner,The magnetic tensioner NMTC series uses permanent magnets to control tension strength by varying the gap in between the magnets and the main tension wheel. The non-contact mechanism design provides stable, consistent and precise tension.
Read More
Gear type toroid winding machine.For various kind of toroid core winding, such as toroid transformers.
power magnetics,UPS inductor, converter inductors, watter metter sensors, toroid current transformer of electronic watter-hour meter, etc.
Needle winding machine nozzle.
Motor nozzle is special for needle winding machine.
Each nozzle is made of a solid piece of material with no joints so as to ensure a smooth path for wire travel.

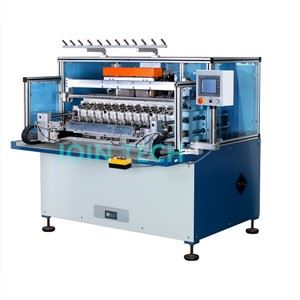

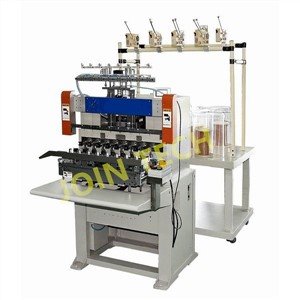

12 spindle wire winding machine. Mainly for various kind of solenoid coil winding, synchronous motor coil and ignition coils winding.
Read More
