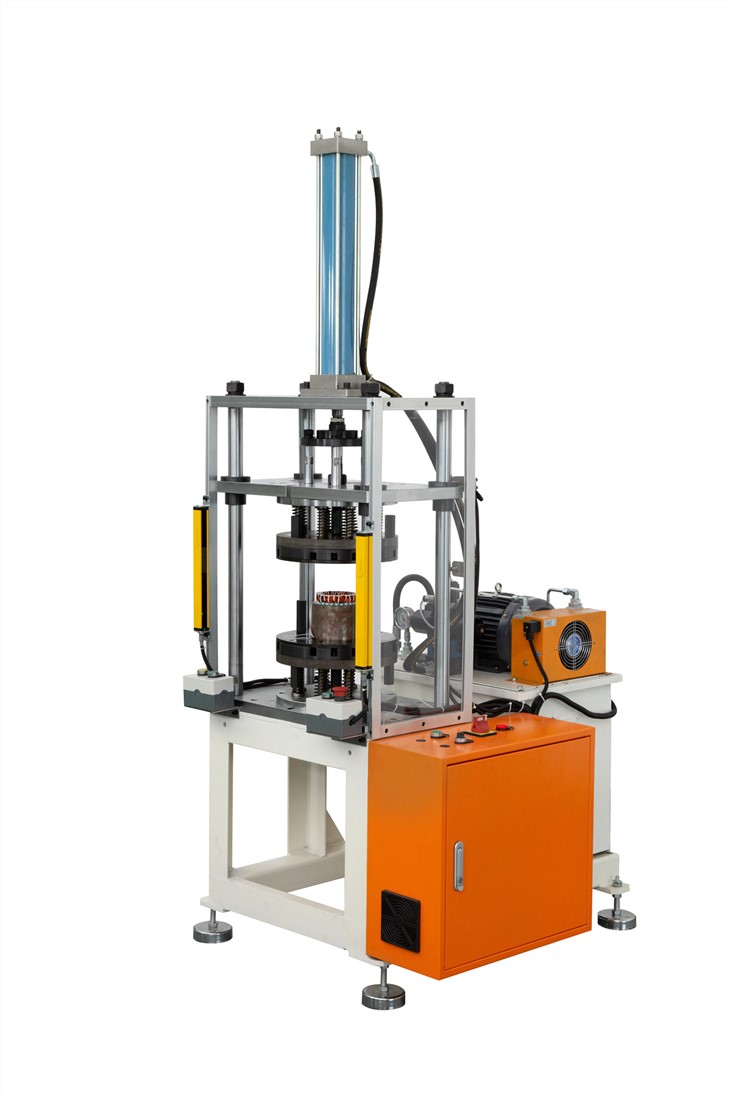

Automatic Coil Shaping Machine

JYZX01

1、  Range of use

 Mainly used for induction motor stator coil re-shaping after inserting. Coil forming and shaping machine is Apply to multi-layer stator winding insertion which needs secondary wire insert.

2. Main function

     -Machine has hydraulic system The up/low four bearing steel pillars used for guiding Under the pushing action of the hydraulic cylinder,relizing re-shaping work through internal expansion and external expansion. Machine for preliminary shaping of wire bundles on the both side of the stator.

     -It is convenient for the secondary insertion and insert of photographic paper to ensure the quality of subsequent insertion,

     -

3、Technical specification
